Specification:

1. Self Healing Type, Reference IS : 2993

Range:

1. Output: 36 MFD to 280 MFD of Single unit

2. Voltage: 440 volts 50Hz

3. Phases: Single Phase

Salient Features:

1. Manufacturing using high Quality Imported MPP with Heavy edge film.

2. Self Healing Property

3. Low Energy Consumption

4. Compact Design

5. Low losses due to advanced winding and Zinc Spraying Equipments

6. Oil Impregnant, gives better cooling effect

7. Highest Inrush current withstanding capacity

8. Custom designs available

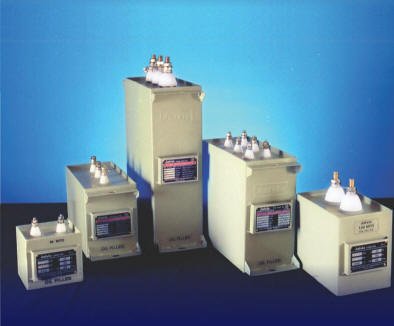

img/ht_shunt/mfd-capacitors-oil-jaivic-nashik-india.jpg

SQUARE MFD OIL CAPACITOR SIZES

MFD
LXBXH MM WITH COVER
MOUNTING & CENTER DISTANCE
APROX .WT IN KG
STANDARD PACKING QTY
36
150X100X130
FLOOR ,135 MM
1.0
20
72
150X100X160
FLOOR ,135 MM
1.5
20
108/120/144
150X100X185
FLOOR ,135 MM
1.8
20
180/216
230X115X190
FLOOR , 210 MM
3.0
12
244/280
290X115X215
FLOOR , 265 MM
3.5
6

MPP / DRY SQUARE MFD CAPACITORS

Specification:

1. Self Healing Type, Reference IS : 2993

Range:

1. Output: 36 MFD to 280 MFD of Single unit

2. Voltage: 440 volts 50Hz

3. Phases: Single Phase

Salient Features:

1. Manufacturing using high Quality Imported MPP with Heavy edge film.

2. Self Healing Property

3. Low Energy Consumption

4. Compact Design

5. Low losses due to advanced winding and Zinc Spraying Equipments

6. Semisolid Epoxy resin filled

7. Weatherproof powder coating

8. Custom designs available

SQUARE MFD DRY CAPACITOR SIZES

MFD
LXBXH MM WITH COVER
MOUNTING & CENTER DISTANCE
APROX .WT IN KG
STANDARD PACKING QTY
36
130X45X90
WALL CLAMP
0.5
50
72
130X45X130
WALL CLAMP
0.7
50
108/120/144
170X45X130
FLOOR ,135 MM
1.2
20
180/216
210X60X140
FLOOR , 190 MM
1.4
14
244/280
210X60X140
FLOOR , 190 MM
1.7
14
